Fascia EC

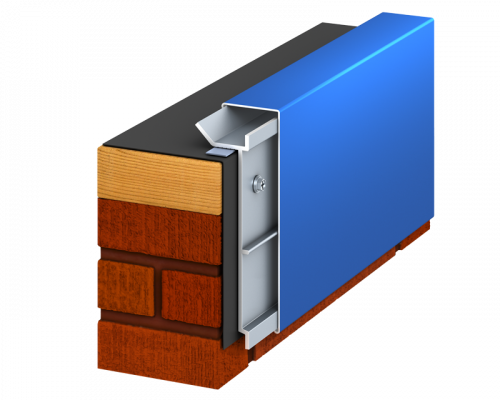

The Drexel Metals Fascia EC System is a two-part assembly that includes a continuous cleat and a decorative fascia cover for single-ply commercial roof systems. Our Fascia EC is available in prepainted Kynar 500® .032″ formed aluminum as well as 24 gauge Galvalume® steel. This product features an .080 extruded aluminum pre-punched cleat with fasteners spaced at 12″ on center. All products come in standard 10′ fascia and 10′ extruded cleat lengths. Concealed splice plates and fasteners are included with the purchase of this product.

Ideal Application
  • Flat Roof
  • Roof Edge

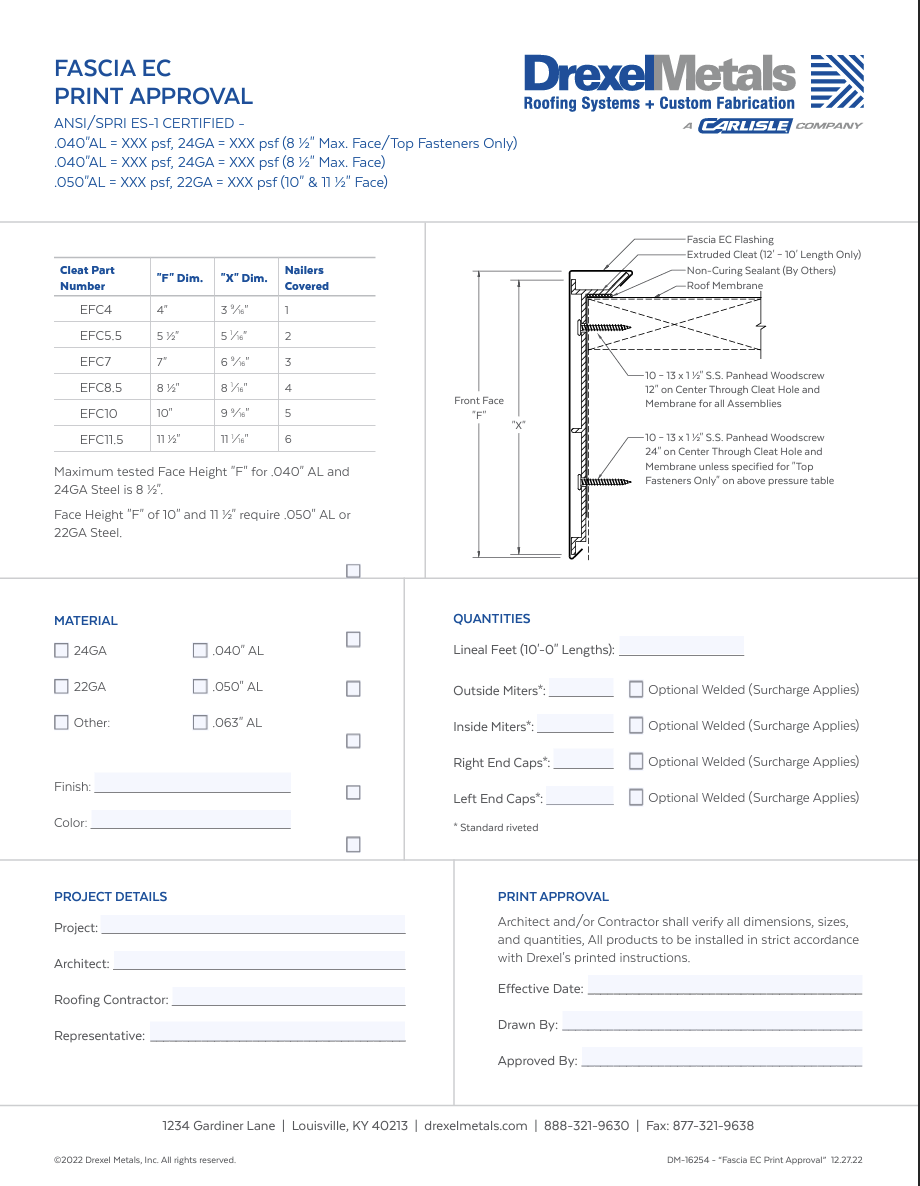

Product Data Sheet
Color Chart
Product Specifications

Material – 24 gauge, Face – up to 8 1/2″, Sustained Pressures – -301 psf(*)
Material – .040 AL, Face – up to 8 1/2″, Sustained Pressures – -312 psf(*)
Material – .032 AL, Face – up to 8 1/2″, Sustained Pressures – -430 psf(*)
Material – 22 gauge, Face – up to 11 1/2″, Sustained Pressures – -240 psf(*)
Material – .050 AL, Face – up to 11 1/2″, Sustained Pressures – -170 psf (*)

*Design Engineer must apply the Factor of Safety
**ADDITIONAL GAUGES – .063 aluminum is available upon request


Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.

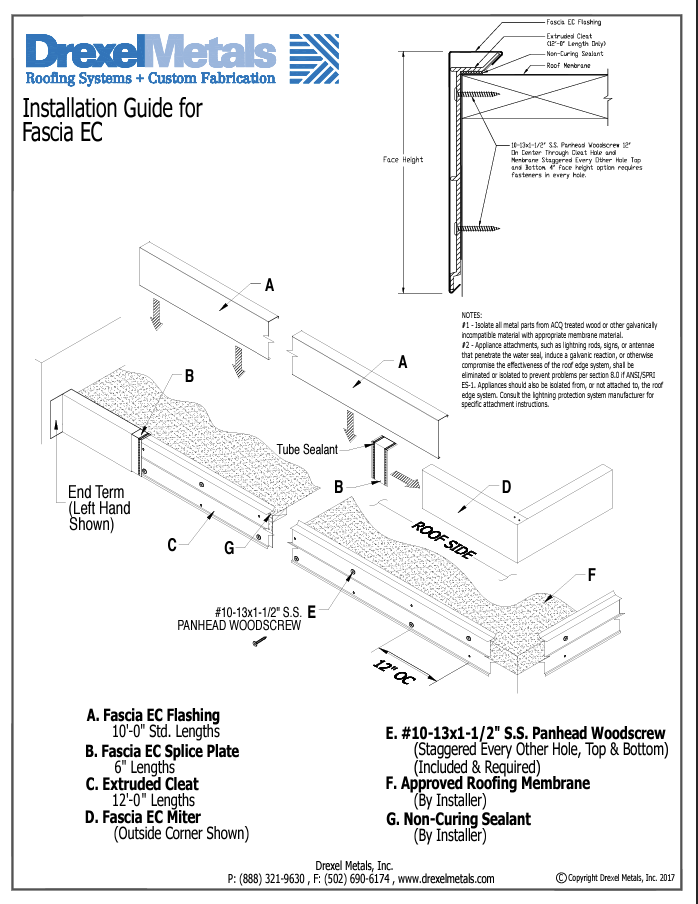

For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.


Drexel Metals Fascia EC system is tested per ANSI/SPRI Test Method RE-2 for fascia. The Fascia EC systems shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This product meets International Building Code minimum requirement.
