Snap Coping Max

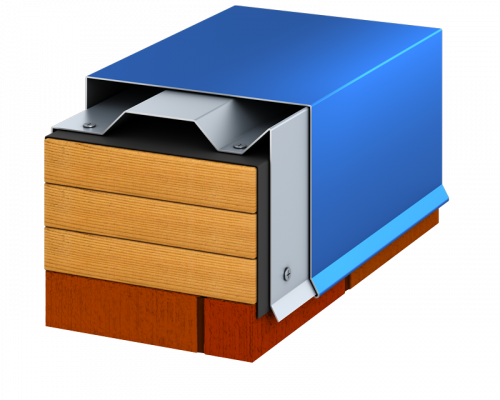

Drexel Metals Snap Coping Max system is a two-part assembly that includes a segmented cleat and a decorative snap-on coping cover for single-ply commercial roof systems. Our Snap Coping Max is available as pre-painted Kynar500® in aluminum and galvalume steel. This product features our 16-gauge (G90) segmented pre-punched cleat spaced at 40” on center, is available in 12” standard cleat lengths and 10’ standard coping cover lengths. Concealed splices, plates, and fasteners are included with the purchase of this product.

Ideal Application
  • Flat Roof
  • Roof Edge
Product Data Sheet
Color Chart
Product Specifications

Material – 24 gauge, Face – up to 12″, Wall Width – 32″ max, Sustained Pressures – -75 psf(*)
Material – .040 AL, Face – up to 12″, Wall Width – 32″ max, Sustained Pressures – -100 psf(*)

*Design Engineer must apply the Factor of Safety
**ADDITIONAL GAUGES – .050 and .063 aluminum and 22 gauge Galvalume are available upon request

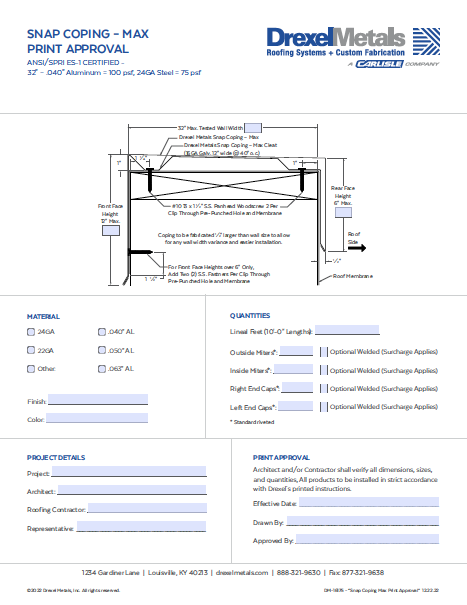

Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.


For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.


Drexel Metals Snap Coping Max system is tested per ANSI/SPRI Test Method RE-3 bi-directional test for wind requirements for Coping and Wall Caps. The Snap Coping Max shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s WindResistance Standard for Edge Systems used withLow Slope Roofing System. This product meets International Building Code minimum requirement.
