Supplying the needs of the US military since 1992
GSA Multi Award Schedule Contract 47QSWA22D009X Information
• Contract Award Date: September 25, 2022
• Duration Five Years
• FSC Group: Facilities
• FSC Class: 5410
• SIN Designation 332311P

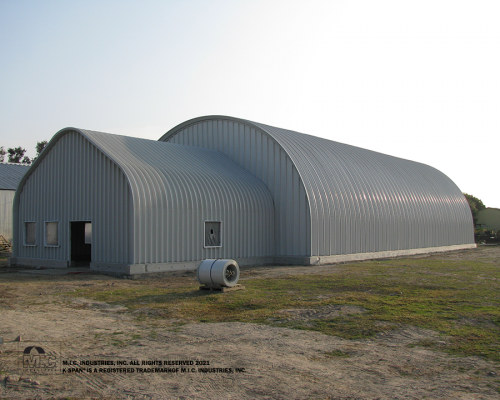

Through our GSA Multi Award Contract, we now offer a superior product, for the military construction of superior K-Span structures, using the MIC Industries Ultimate Building System®.
Drexel Metals offers an enhanced product design. Beginning with the specified requirements for the steel from our mill supplier, that enables the forming of panels without failures.
An enhanced DREXMET® EZ-Form XL+ paint system, to be used with the Ultimate Building System. Designed and developed over many years to withstand the extreme forming that is required. As well as to withstand caustic and corrosive environments. Our paint system is beyond standard!
Coils are packaged for the rigors of transportation and long-term storage.
Stocking and distribution of all scheduled items from a large on hand inventory from several locations throughout the US enables quick lead times when required.
GSA offers Drexel Metals the opportunity to work directly with construction units from all military and federal activities that require the superior pre-painted steel coil for use in K-Span construction. This enables the buyer to receive the product needed when it’s required.
Ordering through the GSA contract is an easy and efficient procurement process that eliminates the extreme time delays required of other means of procurement requiring long lead times and delays in the construction process.
A one stop easy process, with open communications, will keep your project on time and on budget.
Product: UBM–120 .038Nom (.035–.039) x 23.750” Part Number: 224319 Color: Bone WhiteProduct: UBM–120 .043Nom (.040–.046) x 23.750” Part Number: 224317 Color: Cream TanProduct: UBM–120 .043Nom (.040–.046) x 23.750” Part Number: 224316 Color: Colonial RedProduct: UBM–240 .043Nom (.040–.046) x 35.750” Part Number: 253858 Color: Cream TanProduct: UBM–240 .063Nom (.060–.066) x 35.750” Part Number: 224281 Color: Cream TanProduct: UBM–240 .063Nom (.060–.066) x 35.750” Part Number: 224280 Color: Colonial Red
Hot Dipped GalvanizedASTM A653, SS, Grade 50, G90
Modified Siliconized PolyesterPretreatment: Henkel 1421 PhosphatePaint Primer Thickness: .03/.04mil (Both Sides)Topcoat (Color Coat), .07/.08milBottom: Wash Coat, .03/.04mil
Bone WhiteCream TanColonial RedAdditional colors available upon request
Heat treated oak skid to sizeCoils skidded eye–to–skyBanded (3) thru eye to secure to skidCoil Shrink wrapped to skid
• Touch up paint• Caulk and sealants• Butyl Tape• Screws, rivets and other fasteners• Underlayments• Standing Seam painted coil for panel machines• Flat sheets painted for fabrication of trim or flashings• Gutter coil and supplies• Slit coil for Frame Cad Systems• Insulation• ISO Board• Rolled Membrane Roofing• Liquid Roofing solutions• Sheet Metal Hand Tools
K–Span and Ultimate Building System (UBM) are trademarks of M.I.C. Industries, Inc., Clear Book, VA.
