150NS Profile

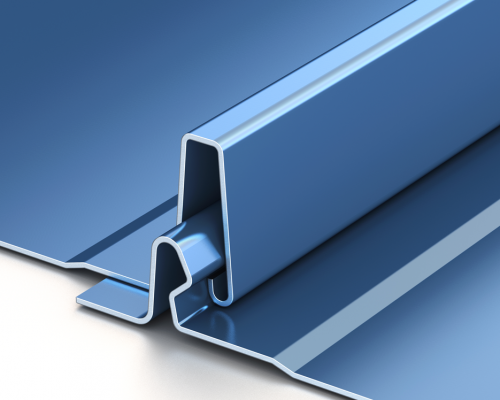

Our DMC 150NS profile offers unlimited design potential with its sleek, crisp appearance and attractive shadow lines. Eliminating the need for metal roof clips, the concealed 11/2″ selflocking Snap Lock
system creates a powerfully protective seal. Versatile and refined, this easytoinstall metal roof delivers superior beauty, durability and strength while showcasing architectural details.

Ideal Application
  • Residential
Product Data Sheet
east
Color Chart
east
Substrate

Painted Galvalume® – 24ga and 26ga
Drexlume™ – 24ga and 26ga
Aluminum – .032″

Panel Rib

Factory made or field rolled to exact lengths.
Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

Available Widths

12” – 19”*

Optimal Panel Widths

15”, 19”

*Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

Testing

UL 580 Wind Uplift (Class 90)
TAS 125 Wind Uplift

UL 1897 Extended Phase Wind Uplift

UL 2218 Class 4 Hail Impact

UL 790 Class A Fire Rating

UL Environmental SRI Third Party Verified

UL 263 Fire Certification

TAS 100 Wind Driven Rain

Miami Dade County Approved

Florida Building Code Approved

Notice

Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available online.

Installation

Can be installed over plywood decking with approved underlayments. Please see Drexel Metals installation details for complete information.

35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES

35 year non pro-rated PVDF Paint Warranty
High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.

25 YEAR WARRANTY - DREXLUME SUBSTRATE

Mill finished Galvalume® with a two-sided, clear acrylic finish.
