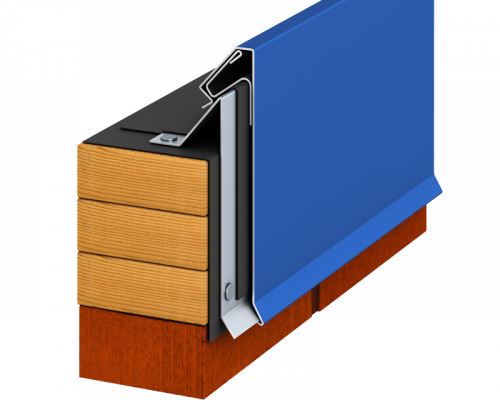

The Drexel Metals Secure Lok Fascia System is a three-part assembly that includes a continuous cleat, 6″ spring clip and a decorative fascia cover for single-ply commercial roof systems. Our Secure Lok Fascia is available in prepainted Kynar 500® .040″ & .050″ formed aluminum and as 22 & 24 gauge Galvalume® steel. This product features a 24 gauge pre-punched cleats with fasteners spaced at 12″ on center. All products come in standard 10′ standard cleat and cover lengths. Concealed splice plates and fasteners are included with the purchase of this product.
Material – 24 gauge, Face – up to 8.25″, Sustained Pressures – 200 psf* Material – .040 AL, Face – up to 8.25″, Sustained Pressures – 210 psf* Material – 22 gauge, Face – up to 12.75″, Sustained Pressures – 150 psf* Material – .050 AL, Face – up to 12.75″, Sustained Pressures – 150 psf* *Design Engineer must apply the Factor of Safety **ADDITIONAL GAUGES – .063 aluminum are available upon request

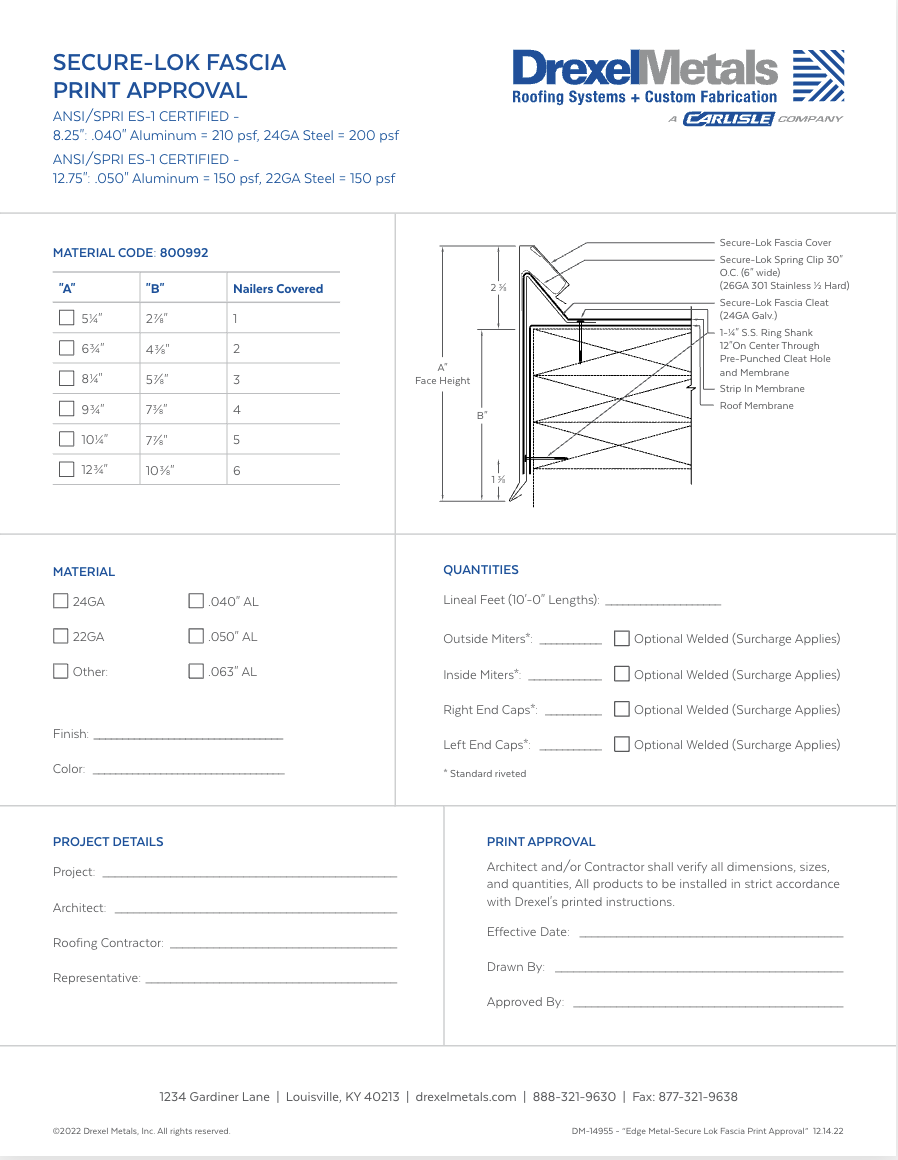

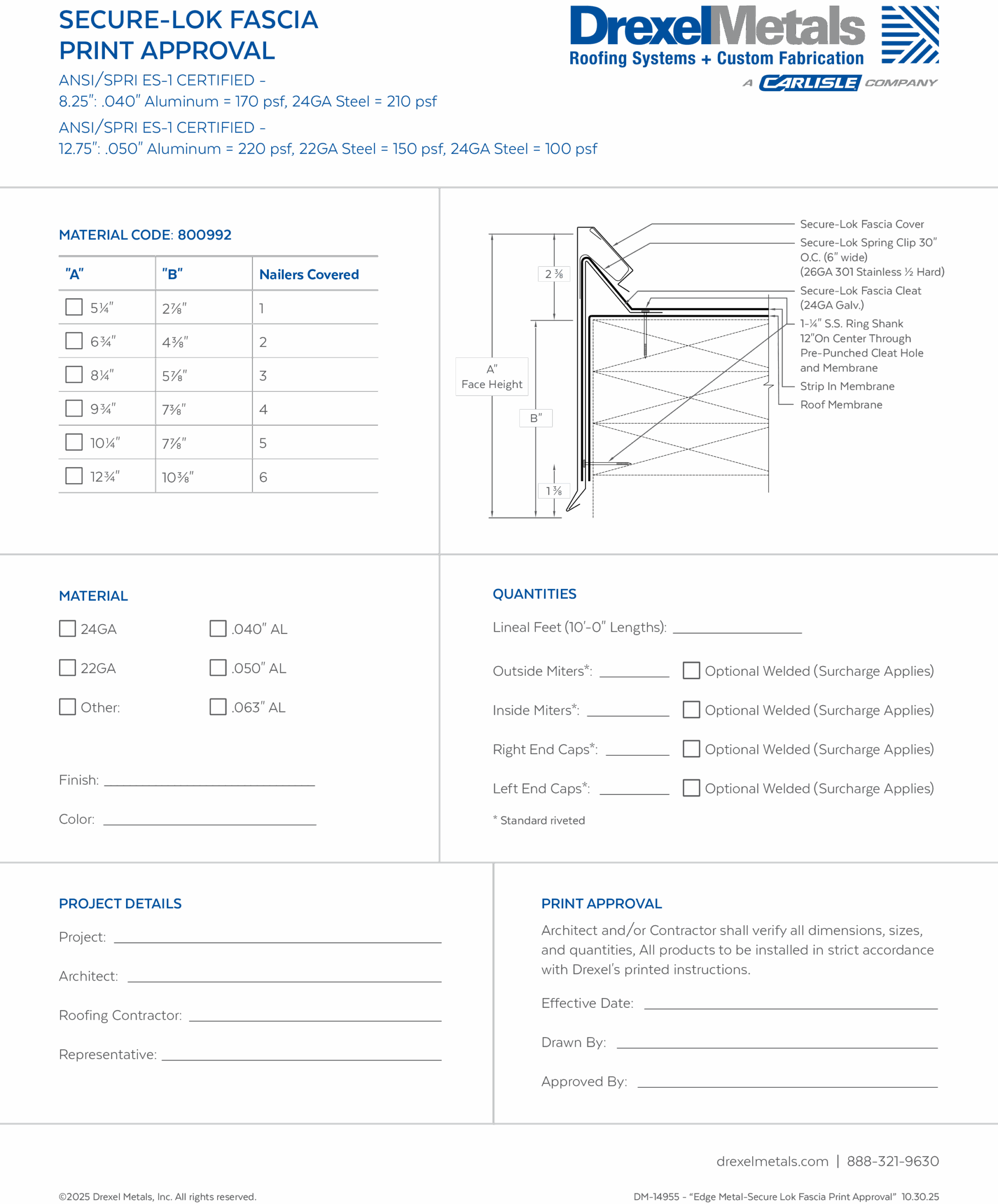

Engineering and shop drawings, as well as longform specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.
For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.
Drexel Metals Secure Lok Fascia system is tested per ANSI/SPRI Test Method RE-2 for fascia. The Fascia systems shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This product meets International Building Code minimum requirement.
